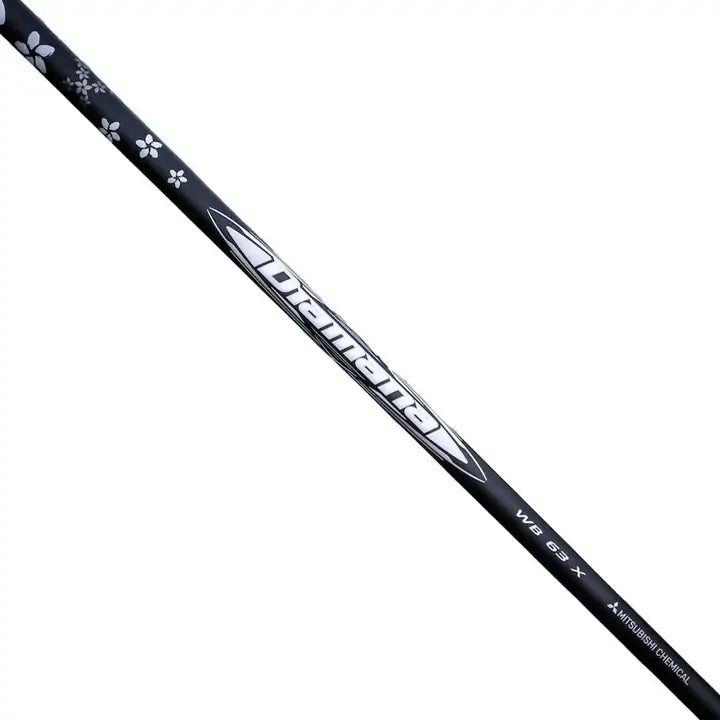

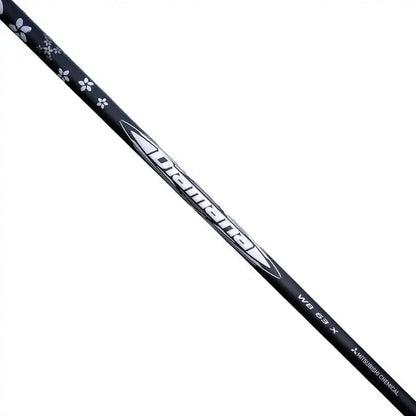

Mitsubishi Diamana WB Whiteboard Wood Shaft
Mitsubishi Diamana WB Whiteboard Wood Shaft
Couldn't load pickup availability
Comes Assembled With Free Adapter & Grip! Please note that there are no returns on all custom-built shafts.
For further customization please get in touch with our friendly staff, at sales@niceongolf.com.au.
Diamana™ WB Overview
Built on an extraordinarily popular and tour-proven platform, the Diamana™ WB model delivers the classic low-low performance and the legendary stability you’ve come to expect, along with the iconic, unmistakable cosmetic so closely associated with the original Diamana™ shafts.

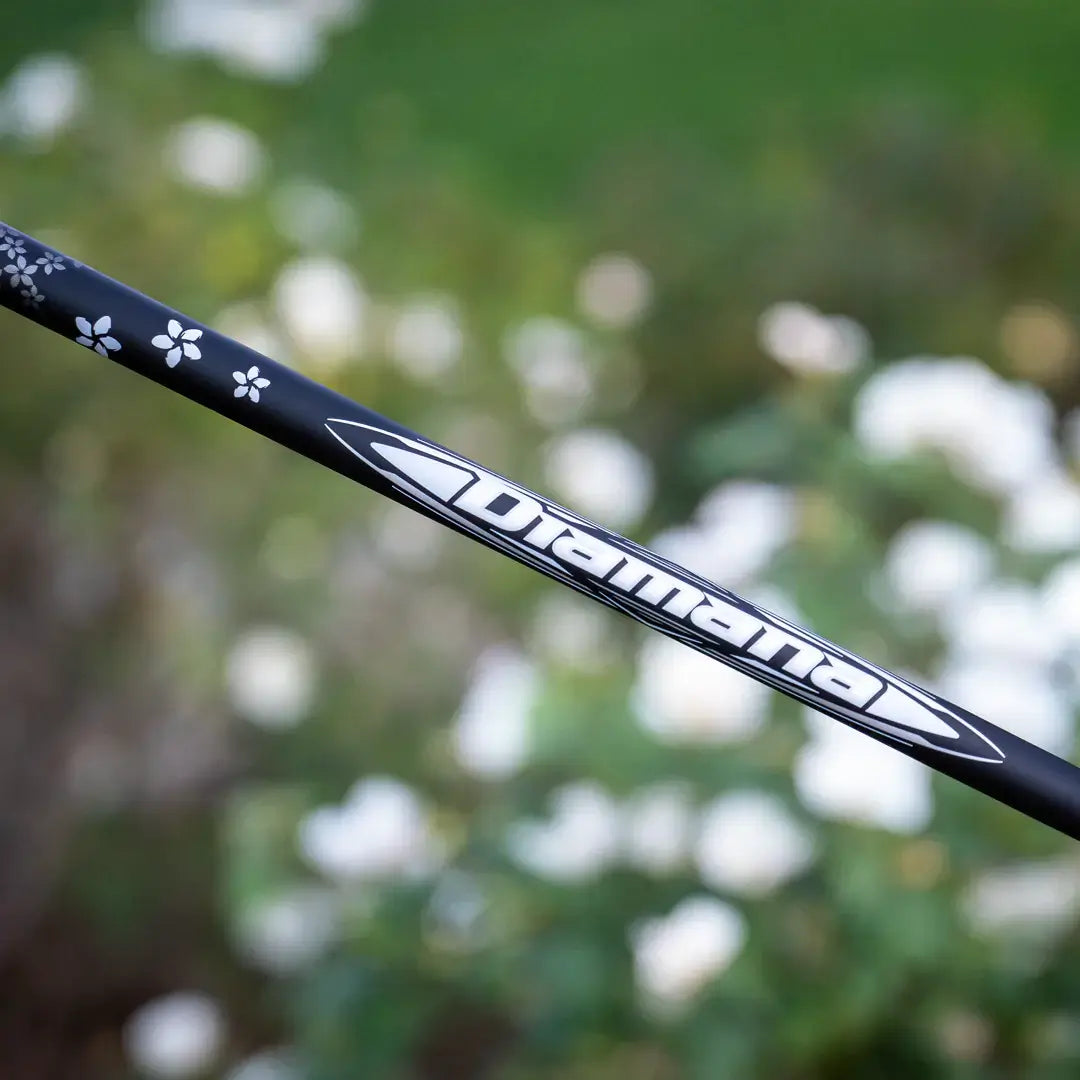

Diamana™ WB is designed with all the distinctive branding that made Diamana™ so beloved — including flowers in the handle section, a surfboard behind the Diamana logo, and return to the original 53/63/73/83 weight class designations — but, rest assured, the only thing throwback about Diamana™ WB is its appearance. Indeed, super high-modulus 80-ton Dialead Pitch Fiber is used in the butt section to deliver maximum stability and increased energy transfer and high modulus 46-ton fiber is used in the shaft’s angle plies to reduce torque without increasing weight for improved control and stability. Carbon fiber orientation at the tip section is optimized to further lower torque.
The classic feel of this Diamana™ profile is achieved through the use of our proprietary Xlink Tech™ Resin System and MR70 technologies. Our Xlink Tech™ Resin System increases the strength and durability of the shaft while driving carbon fiber volume up for better feel. Feel and strength is further increased through the use of our aerospace-grade MR70 fiber – our strongest fiber to date.
Key Features Include:
- 80-ton DIALEAD Pitch Fiber in butt section to maximize stability and energy transfer
- High modulus 46-ton fiber in angle plies to lower torque without increasing weight
- Xlink Tech™ Resin System to increases the strength and durability of the shaft
Who should play it? Golfers in search of a modern, pro-grade shaft to support a penetrating low launch, low spin drive.
Fit Guide
| DRIVER MPH/YDS | <80/210 | 81-90/210-239 | 91-105/240-259 | >106/260 |
|---|---|---|---|---|
| R2/R | R/SR | S/X | ||
| R | R/SR | S/X | X/TX | |
| R | R/SR/S | S/X | X/TX | |
| S/X | X/TX | |||
| S/X | TX |
IMPORTANT: For reference only. Mitsubishi Golf recommends being fit by a professional fitter.
Diamana™ WB Specifications
| Shaft | Flex | Length | Weight/GMS | Tip OD | Tip Length | Butt OD | Torque | Kick Point |
|---|---|---|---|---|---|---|---|---|
| Diamana™ WB 43 | R2 | 46 | 43 | 0.335 | 3 | 0.600 | 5.5 | High |
| Diamana™ WB 43 | R | 46 | 44 | 0.335 | 3 | 0.602 | 5.4 | High |
| Diamana™ WB 43 | SR | 46 | 46 | 0.335 | 3 | 0.602 | 5.4 | High |
| Diamana™ WB 43 | S | 46 | 47 | 0.335 | 3 | 0.602 | 5.3 | High |
| Diamana™ WB 43 | X | 46 | 48 | 0.335 | 3 | 0.602 | 5.3 | High |
| Diamana™ WB 53 | R | 46 | 52 | 0.335 | 3 | 0.594 | 4.7 | High |
| Diamana™ WB 53 | SR | 46 | 53 | 0.335 | 3 | 0.596 | 4.7 | High |
| Diamana™ WB 53 | S | 46 | 54 | 0.335 | 3 | 0.596 | 4.6 | High |
| Diamana™ WB 53 | X | 46 | 55 | 0.335 | 3 | 0.598 | 4.6 | High |
| Diamana™ WB 53 | TX | 46 | 58 | 0.335 | 3 | 0.600 | 4.6 | High |
| Diamana™ WB 63 | R | 46 | 60 | 0.335 | 3 | 0.602 | 3.2 | High |
| Diamana™ WB 63 | SR | 46 | 61 | 0.335 | 3 | 0.602 | 3.1 | High |
| Diamana™ WB 63 | S | 46 | 62 | 0.335 | 3 | 0.602 | 3.1 | High |
| Diamana™ WB 63 | X | 46 | 63 | 0.335 | 3 | 0.604 | 3.1 | High |
| Diamana™ WB 63 | TX | 46 | 65 | 0.335 | 3 | 0.606 | 3 | High |
| Diamana™ WB 73 | S | 46 | 70 | 0.335 | 3 | 0.602 | 3 | High |
| Diamana™ WB 73 | X | 46 | 72 | 0.335 | 3 | 0.604 | 2.9 | High |
| Diamana™ WB 73 | TX | 46 | 73 | 0.335 | 3 | 0.604 | 2.9 | High |
| Diamana™ WB 83 | S | 46 | 80 | 0.335 | 3 | 0.602 | 2.7 | High |
| Diamana™ WB 83 | X | 46 | 83 | 0.335 | 3 | 0.602 | 2.7 | High |
| Diamana™ WB 83 | TX | 46 | 84 | 0.335 | 3 | 0.604 | 2.7 | High |
